High Efficiency LED
High Bay Light
130W
High Efficiency allows for lower wattage = less energy
190 lm/W
Industry leading efficiencies
24700 lm
Low energy but still packs a punch
0-10V Dimmable
Allows multiple uses and even more energy savings
IP65
High resistance to dust and water
5 Year Warranty
Locally backed to suit New Zealand’s harsh environment
130W
Industry leading efficiencies
190 lm/W
Industry leading efficiencies
24700 lm
Low energy but still packs a punch
0-10V Dimmable
Allows multiple uses and even more energy savings
IP65
High resistance to dust and water
5 Year Warranty
Locally backed to suit New Zealand’s harsh environment
Description

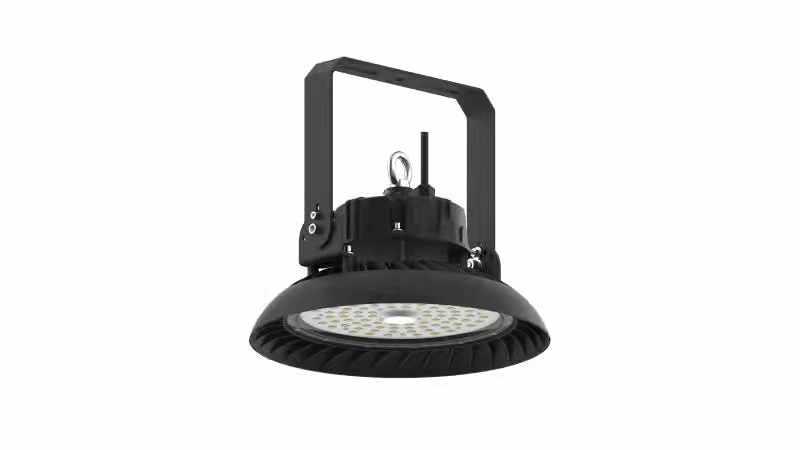

The Voltrix 130W high efficiency high bay light is an excellent choice for large covered spaces to provide bright and uniform illumination. Specifically designed in New Zealand to deliver 190 lumens per watt, it is up to 35% more energy-efficient than legacy LED lighting fixtures that only offer 120-140 lumens per watt.

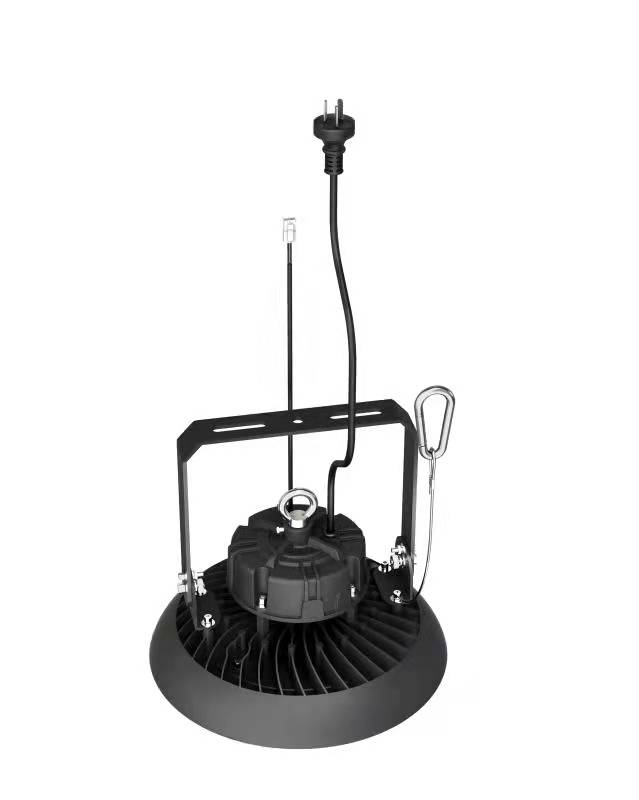

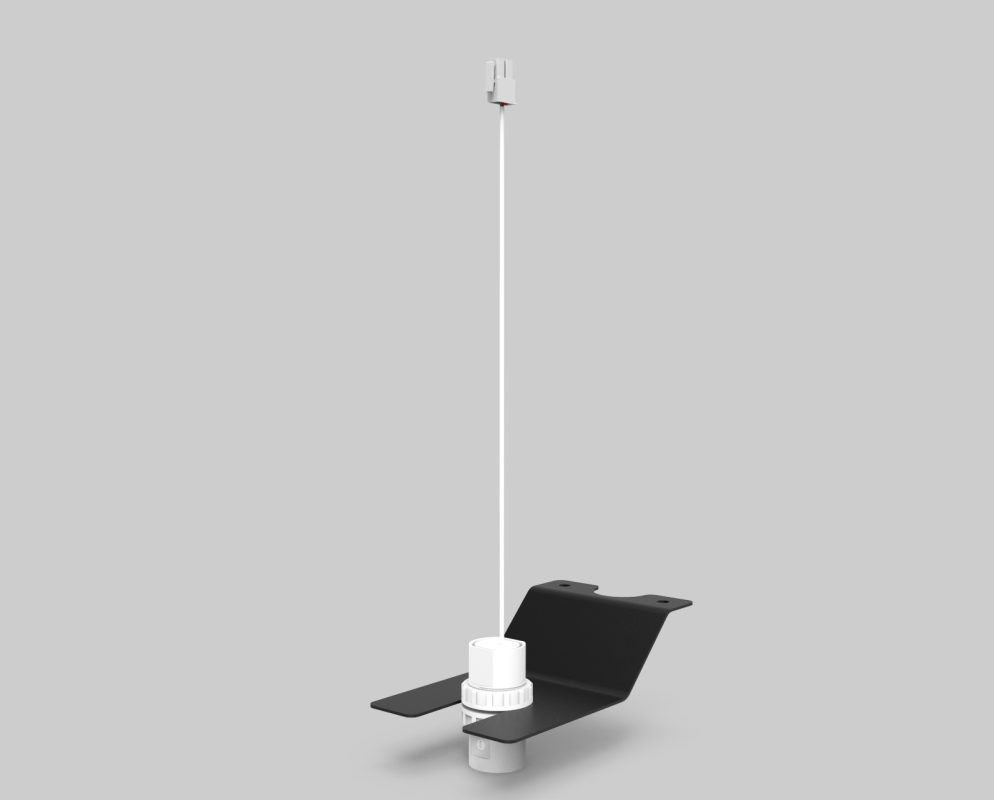

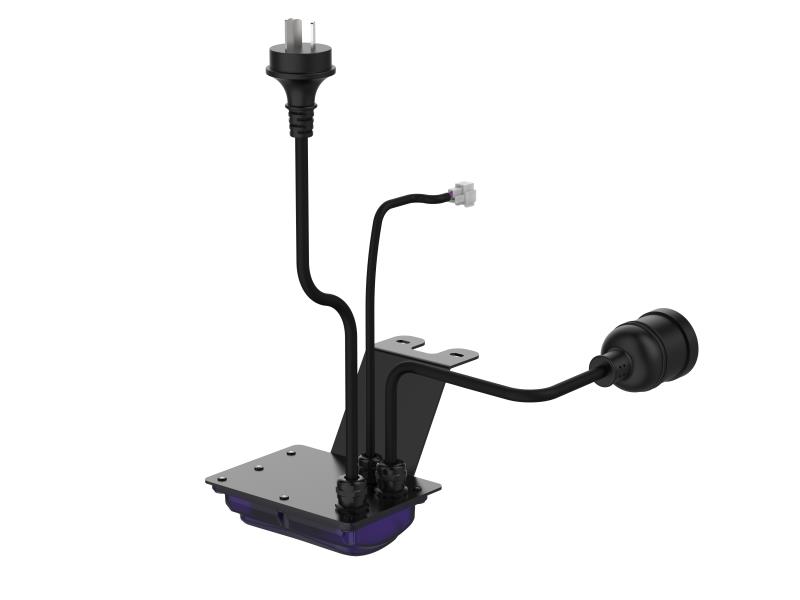

Each Voltrix high bay is configurable with optional motion and daylight harvesting sensors, providing the option for scalable installs to maximise energy savings and reduce CO2 emissions. Three mounting options including an eye bolt for hanging, standard U bracket (allowing the fitting to be mounted to the side of a
roofing purlin) and a low profile U bracket, provides ease for installation in a range of locations.
| Wattage: | 130W |
| Luminaire Efficiency: | 190 lm/W |
| Total Lumen Flux: | 24,700 lm |
| Optic Beam Angle: | 120° (90° with Reflector) |
| Tilt Adjust: | +/- 90° (with standard U Bracket) |
| Unified Glare Rating (UGR): | <28 (120°) |
| IP Rating: | IP65 |
| IK Rating: | IK10 |
| Correlated Colour Temperature (CCT): | 5000K Daylight |
| CRI: | >70 |
| Lifespan: | >50,000 hours - L70 (TM21-10K) |
| Input Voltage: | AC100 – 240V~ |
| Power Frequency: | 50 / 60 Hz |
| Cold Start Inrush: | 50A |
| Surge Immunity: | 5KV (L-E) / 4KV (L-N) (IEC/EN61000-4-5) |
| Total Harmonic Distortion (THD): | <15% (Condition Load: 100% / 277VAC) |
| Power Factor: | >0.95 |
| Connection: | AU/NZ 3 Pin Plug (IEC Type I) with 2m cord |
| Driver: | Incorporated in fitting |
| Dimming: | 0-10V Dimmable via Molex Plug |
| Material: | Black Aluminium (Housing), Polycarbonate (Lens) |
| Working Temperature: | -25°C to +50°C |
| Working Humidity: | 15% to 90% RH |
| Weight: | 3.2kg |
| Storing Temperature: | -40°C to +70°C |
| Dimensions: | D320 x H166 (fitting only), H210 (w/ Eye Bolt) |
| Application: | Industrial Highbay Flood Light |
| Warranty: | 5 year Warranty (RTB) |
